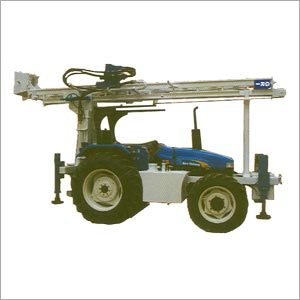

Tractor Mounted DTH Hydraulic Rig

Get a Price/Quote

Tractor Mounted DTH Hydraulic Rig Specification

Motor Power
Hydraulic Motor Driven

Noise Level
85 dB(A)

Frequency
50 Hz

Condition
New

Machine Type
DTH (Down The Hole) Drilling Rig

Product Type
Tractor Mounted DTH Hydraulic Rig

Material
Mild Steel, Alloy Steel, Hydraulic Components

Computerized
No

Automatic Grade
Semi Automatic

CNC Or Not
No

Control System
Hydraulic Control Panel

Voltage
415 V

Power
35 HP (Tractor engine)

Power Source
Diesel (tractor driven)

Weight (kg)
Approx. 3300 kg

Dimension (L*W*H)
7300 mm x 2400 mm x 2600 mm

Capacity
Up to 150 m Drilling Depth

Color
Yellow / Blue (custom colors available)

Usage & Applications
Water Well Drilling, Borewell Drilling, Soil Sampling

About Tractor Mounted DTH Hydraulic Rig

Leveraging on our competitive pricing policy & ethical business dealings, we are engaged in manufacturing and exporting Tractor Mounted DTH Hydraulic Rig. These hydraulic rigs are manufactured at our well-established manufacturing unit utilizing supreme quality metals. Mounted on tractors, these hydraulic rigs are broadly used for drilling operations. Before supplying to our valuable clients, Tractor Mounted DTH Hydraulic Rig is stringently checked by us on different quality norms.

Features:

Easy to use
Sturdy structure
Impeccable performance

Further Details:

Blast Hole Drilling
Borewell Drilling

Specifications

Maximum Drill hole Diameter: 6.5"
Maximum depth: 30 Mtr. And Above
Mast Length: 6000 mm.
Rotary head speed: 0 - 65 rpm.
Feed system pull up: 4,500 kgs.
Suitable for 500 CFM & 200 PSI Compressor.

Versatile Drilling Capabilities

Engineered for water well drilling, borewell construction, and soil sampling, this rig meets various needs in agriculture, construction, and geo-technical investigations. Its semi-automatic mechanism, coupled with hydraulic control, delivers dependable results across diverse terrains.

Robust Build Quality

Manufactured using mild and alloy steel with specialized hydraulic components, the rig is designed for optimal durability and low maintenance. The sturdy construction supports intensive field deployment and is suitable for prolonged drilling operations.

Easy Operations with Hydraulic Controls

Featuring a hydraulic control panel, users can manage drilling processes efficiently with enhanced precision and safety. The tractor-driven power source ensures mobility and ease of setup, allowing quick relocation between sites.

FAQs of Tractor Mounted DTH Hydraulic Rig:

Q: How does the tractor mounted DTH hydraulic rig operate?

A: The rig is powered by a 35 HP tractor engine that drives hydraulic motors, allowing for controlled drilling operations via a hydraulic control panel. This system enables efficient down-the-hole drilling for water wells and soil investigations.

Q: What materials are used in the construction of the rig?

A: The rig is constructed using a combination of mild steel, alloy steel, and high-quality hydraulic components, ensuring longevity and resilience against tough drilling conditions.

Q: When is it ideal to use this drilling rig?

A: It is best suited for new installations and projects requiring borewell and water well drilling, or for soil sampling, especially in agricultural, construction, or geo-technical fields.

Q: Where can this DTH hydraulic rig be deployed?

A: The rig can be used in varied terrains across India, including rural and semi-urban areas where water and soil drilling are necessary. Its tractor-mounted design allows easy transport to remote project sites.

Q: What is the process for drilling using this rig?

A: Once positioned, the operator uses the hydraulic control panel to lower the drill. The DTH hammer mechanism rapidly advances the drill bit, reaching depths up to 150 meters efficiently.

Q: What are the benefits of using this semi-automatic rig?

A: Key benefits include mobility, reduced manual labor, enhanced drilling speed, and precise hydraulic control. Its efficient set-up and robust build ensure reliable performance and cost-effectiveness.
